Graphical Interface

Graphical Interface#

NEMO ships a self-contained Tkinter GUI that lets you run the full pipeline interactively — no Python scripting required. Launch it with:

nemo-gui          # via the installed entry-point
python -m nemo.gui  # directly from the source tree

—

Overview#

The GUI is a four-card workspace that mirrors the pipeline stages. Each card becomes active only after the previous stage completes, guiding you through the workflow in order.

_images/fullfield_moments.png

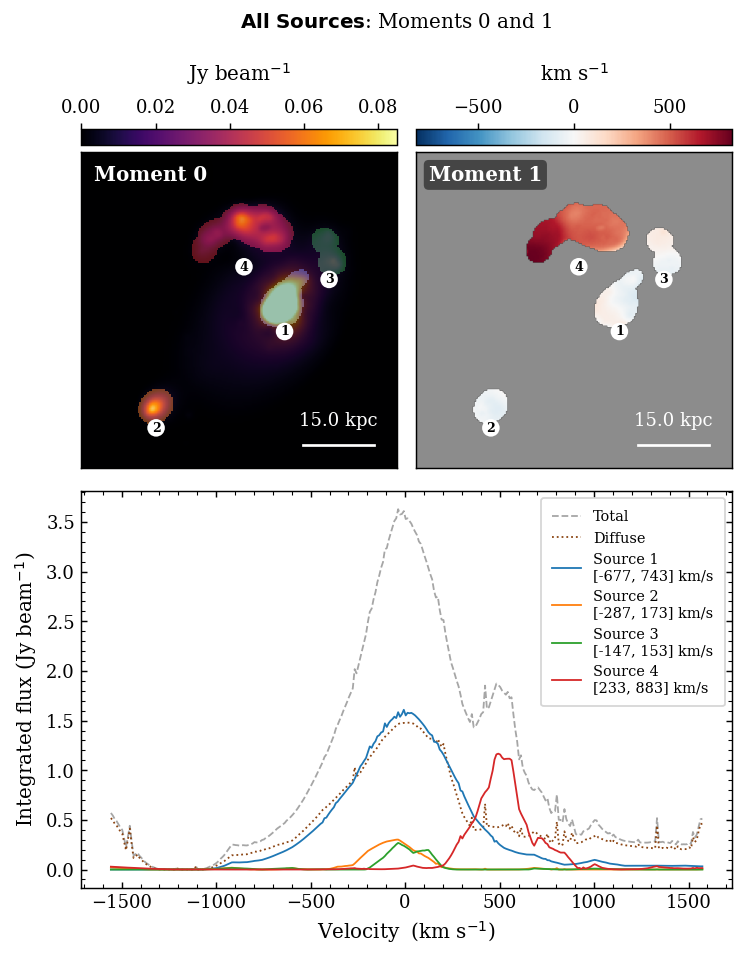

Full-field moment maps produced by the GUI’s Combined Analysis window.#

—

Card Layout#

Card

Purpose

Moment 0

Load a spectral cube and inspect the integrated intensity map. Supports FITS, HDF5, NumPy .npy/.npz.

Wavelet Detections

Configure the starlet wavelet detector, run source identification, and browse per-channel detection overlays.

Flow Tracking

Tune TV-L1 optical flow parameters and inspect the per-channel flow field.

Source Grouping

Browse the final source catalogue; open moment maps, spectra, and per-source analysis windows.

The animated GIF strip beneath each card preview is synchronised — all four cards step through spectral channels together at 220 ms per frame.

—

Loading a Cube#

  1. Click Load Cube on the Moment 0 card.

  2. Select a file. Supported formats:

    • *.fits / *.fit — ALMA FITS cubes; beam and WCS read automatically.

    • *.h5 / *.hdf5 / *.hdf — HDF5 toy-cube convention (dataset cube, beam attrs, channel_velocities_km_s).

    • *.npy / *.npz — raw NumPy arrays (no beam or WCS).

  3. The moment-0 map renders immediately. A scale bar and beam ellipse appear if pixscale and beam metadata are present.

Cube scaling (available immediately after load):

Mode

Effect

linear

No transformation; raw flux values passed to the detector.

log

log1p(clip(cube, 0)) — compresses dynamic range.

power

clip(cube, 0) ** γ — adjustable gamma (default 0.5).

—

Wavelet Detection — Configure & Run#

Click Configure & Run Decomposition on the Wavelet Detections card to open the Scale Viewer.

Scale Viewer#

The Scale Viewer renders the per-channel starlet coefficient maps side-by-side. Use it to choose the detail band that best isolates your sources before committing to a full pipeline run.

Control

Description

Number of scales radio buttons

Sets the total decomposition depth J (2 … max). Max is floor(log₂(min(H,W))) − 1.

Choose scale radio buttons

Highlights the selected detail band (1-based). The chosen scale is used for component extraction.

k-sigma

Detection threshold in units of per-scale noise σ. Lower values detect fainter sources at the cost of more false detections.

Min area (px)

Discard connected components smaller than this many pixels.

Flux threshold (% of cube max)

Absolute flux floor expressed as a percentage of the cube maximum. Leave blank to use the automatic k-sigma estimate.

Save Parameters

Stores the parameters and closes the viewer.

Detection parameters#

Parameter

Default

Description

scales

6

Total starlet levels (5 detail bands + 1 coarse residual).

k_sigma

5.0

Detection threshold in σ units.

use_scale

5

1-based detail band used for component extraction.

min_area

20

Minimum component area in pixels.

thresh

(auto)

Absolute flux floor; None uses 10 % of channel peak.

use_mean_map_sigma

True

Anchor noise estimate to the mean-map decomposition.

Running Source Identification#

Click Run Source ID to execute the full pipeline in a background thread:

  1. Starlet wavelet detection (logs stream to the Wavelet Detections card).

  2. Masked TV-L1 optical flow (logs stream to the Flow Tracking card).

  3. Track linking + split/merge detection (logs to Source Grouping card).

  4. Source grouping + false-detection removal.

The GIF strip updates live as each stage finishes. You can toggle between the preview figure and the log output using the Show Logs / Show Figure button that appears in the top-right corner of each card’s preview square.

—

Optical Flow Parameters#

Open via Optical Flow Parameters on the Flow Tracking card at any time after loading a cube.

Parameter

Default

Description

min_match_overlap

5

Minimum pixel overlap between an advected mask and a detected component footprint to accept a track continuation.

max_gap_channels

5

Maximum consecutive unmatched channels before a track is deactivated.

—

Slice Viewer#

Available from all four cards via View Slice, View Detections, View Flow per Channel, and View Sources per Channel.

Control

Description

Colormap dropdown

Switch between inferno, viridis, magma, plasma, and seven other colormaps.

Norm radio buttons

linear · log · power — applied on-the-fly without rerunning the pipeline.

vmin / vmax sliders

Fine-tune the display range; value labels update in real time.

Channel slider

Step through the cube one channel at a time. In detection / flow / sources modes only active channels are shown.

Sources checkbox panel (sources mode only)

Toggle per-source overlay visibility.

—

Analysis Windows#

Both windows open from the Source Grouping card after tracking completes.

Combined Analysis#

Opens with Combined Analysis. Shows:

  • Moment 0 — integrated intensity map with per-source colour overlays.

  • Moment 1 — flux-weighted mean velocity map masked to source footprints.

  • Integrated spectra — toggleable curves for the total flux, diffuse (non-source) flux, and each individual source.

Individual Source Analysis#

Opens with Individual Analysis. Cycle through sources using the radio buttons on the right panel. For the selected source shows:

  • Moment 0 crop — centred on the source bounding box with a 8 px padding.

  • Moment 1 crop — flux-weighted velocity map inside the footprint.

  • Spectrum — integrated flux per channel with a shaded span marking the detected channel range.

—

View All Logs#

Click View All Logs in the banner (left sidebar) to open a scrollable window containing the full pipeline output from all three processing stages, separated by section headers.

—

Keyboard & Mouse#

Action

Effect

Channel slider drag

Step through cube channels in any viewer.

Colormap / Norm change

Instant redraw — no recomputation needed.

Toggle button (preview square)

Switch between figure preview and log output within each card.

Source checkboxes (sources mode / combined analysis)

Hide/show individual source overlays without rerunning.

—
